Citizen diver

by

Citizen diver 150m 52-0110 dial variants


The largest group of Citizen divers is the 150m one. It has a classic design and a gorgeous look. They had a production time span of about 15 years, powered by a handfull of movements. The last model was the one in this article, the 52-0110. Even if this is one model it had a few variants. I saw only black dialed versions and a rare orange dial one. Stephen on his page suggests it might have had a blue dial too. http://sweep-hand.org/citizens-vintage-divers-1962-to-1980/ I have yet to see one to confirm that.

No matter the color, we can see two design variants, one prior to 1978 and one after 1978. I will call them “type 1″(8210 820719-S) and “type 2” (8210 824391 KA). The dial code is printed on the dial at the bottom of 6 o’clock. I am lucky enough to have both of them. Let’s see the picture that can be magnified them for better understanding.

citizen 150m 52-0110

My type 1 was made in ’77 and type 2 in ’78. The case is the same, the crown, crystal, bezel and movement are the same. Both powered by the well known Citizen cal. 8210, 21.600bph, quick set date, non hacking seconds.

The main difference is the dial, and the way the hour markers, the logo and the date frame are made.

  1. Type 1 has the letters of the Citizen logo separated while type 2 has all the letters connected in an applied logo.
  2. The date window on type 1 is connected with the lume frame. By contrast type 2 has two distinctive parts, date frame, and lume frame.
  3. These is due to the way Citizen chose to manufacture the dials. Starting from ’78, on type 2, they decided to apply these elements, and so they did. They made the dial, painted it, printed the white lettering and the minute markers and later applied the logo, the date frame as well as the hour markers.
  4. In type 1 (prior to ’78) we have a unibody dial, made in one piece containing the logo, date frame and hour markers. After painting and printing it Citizen polished the surface revealing this look.
  5. Under magnification the main difference is easy to spot: Type 1 has polished elements with only one metallic surface appearance while type 2 had these elements polished  on the sides too. This is because they were never painted. On type 1 we can see the black paint on the sides of the logo, date frame and hour markers.

With Citizen most of the times the look of a watch is dictated by the manufacturing process and so is the case with these dials too.

Read more about this model here:  https://vintagecitizenwatches.com/2013/12/24/citizen-automatic-diver-150m-52-0110/

Advertisement
by

Underwater Diving Watches Quartz War


The Quartz Crisis, (also known as the Quartz Revolution), is a term used in the watchmaking industry to refer to the economic upheavals caused by the advent of quartz watches in the 1970s and early 1980s, which largely replaced mechanical watches. It caused a decline of the Swiss watchmaking industry, which chose to remain focused on traditional mechanical watches, while the majority of world watch production shifted to Asian companies that embraced the new technology.

On 25 December 1969, Seiko unveiled the quartz Astron, the world’s first quartz watch. The first Swiss quartz analog watch—the Ebauches SA Beta 21 containing the Beta 1 movement—arrived at the 1970 Basel Fair. The Beta 21 was released by numerous manufacturers including the Omega Electroquartz. On 6 May 1970, Hamilton introduced the Pulsar – the world’s first electronic digital watch. In 1974 Omega introduced the Omega Marine Chronometer, the first watch ever to be certified as a Marine Chronometer, accurate to 12 seconds per year using a quartz circuit that produces 2,400,000 vibrations per second.In 1976 Omega introduced the Omega Chrono-Quartz, the world first analogue/digital chronograph, which was succeeded within 12 months by the Calibre 1620, the company’s first completely LCD chronograph wristwatch.

quartz crisis Citizen divers(two prints from 1977 and 1979 of Citizen quartz and automatic diving watches side by side)

By 1978 quartz watches overtook mechanical watches in popularity, plunging the Swiss watch industry into crisis while at the same time strengthening both the Japanese and American watch industries.  As a result of the economic turmoil that ensued, many once profitable and famous Swiss watch houses became insolvent or disappeared. The period of time completely upset the Swiss watch industry both economically and psychologically. During the 1970s and early 1980s, technological upheavals i.e. the appearance of the quartz technology, and an otherwise difficult economic situation resulted in a reduction in the size of the Swiss watch industry. Between 1970 and 1988 Swiss watch employment fell from 90,000 to 28,000.(wikipedia)

At the same time Citizen was carrying it’s own war. Prior to this era the company was developing a lot of movements and interesting complications. Citizen production of quartz oscillators begun in March 1976 so the prints above are dating to the very heart of the war. Read more about Citizen history HERE.

So, who won?!

by

Citizen Parawater – THE Parawater


After presenting the first watch manufactured by Citizen, the beautiful pocket one (read about it HERE), it is time for another milestone in watchmaking. This time, the first Japanese waterproof watch, THE Parawater! This makes it the grand, grand father of all the Citizen divers we all love so much!  Please note that this was not intended for diving, but it was up to the task for swimming!

In 1959 the company produced the first Japanese water-resistant wrist watch. This was the “Citizen Parawater”. It was powered by the Citizen Cal. 920(2B). It was produced with  19, 21 and 23 jewels. Soon after, the Parawater completed two trans-Pacific tests and one in the Sea of Japan. The result, needless to say, was positive. As time passed Citizen was growing as a company and exported more and more watches, so (unfortunately IMHO) the term “Para Water” was changed to the universally recognized (an boring)  “Water resistant” somewhere around 1970-1973.

Back to this particular one! The line chosen to be modified so that it will become water protected was a success already, the Deluxe. Citizen changed the design of the case, added rubber seals and greatly modified the tube and crown assembly. By doing that and after a lot of research they were able to stand by their product in public demonstrations.

Citizen Parawater Deluxe

After intensive search I managed to find this particular watch, in an non working state, the bracelet and the clasp was destroyed beyond restoration and the crystal was badly scratched, but what an awesome find! I had to take the plunge! (pun intended 🙂 ) This is how I got the pictures from the seller in Greece:

Citizen Parawater

Now, after a long time deciding how invasive the restoration should be I went with a bracelet swap with a similar design from the same time frame by Citizen, a light crystal polish and I got the movement running again.  This is the end result:

Citizen Parawater Deluxe

Interesting facts: The black dial has lume dots and the hands are also with luminous material, making it very rare (the only one I saw) and very beautiful. Another detail is the fact that the entire dial in printed and there is no applied logo.

The caseback has the inscription: “All stainless steel”, “Antimagnetic”, “Parawater”, “STAR”, “Citizen Deluxe” and the serial no. By the way the watch is made in 1959, making it one of the very first pieces.

Beautiful lug holes for easy bracelet replacement.

Don’t forget to magnify the last picture for more details!

Conclusion: I am so happy to introduce to you this wonderful piece of history and I hope you like it as much as I do! The watch found a new home with Daniel in Germany and for sure it is a great home! Enjoy it Daniel!

Later edit (2015):

I here present to you my keeper Para Water, that I found this year in Hong Kong (thanks Anthony! 🙂 ) Excellent condition, fully working 100% original, made in 1961.

parawater citizen deluxe

Here are the three dial variants, Two white ones (one with a star, the other without) and the black one.

parawater citizen

Update 2016 APR

Here it is a commercial advertising sign from the period:

the first parawater citizen

Read more about vintage Citizen divers HERE

by

Citizen 150m diver bezel (original vs fake)


Call it fake, call it aftermarket, one thing is true: it is not original.

As a vintage watches collector I find myself often in the situation where I am wrong about some things I take too easily for granted. We all learn, sometimes it is the easy way, sometimes is the hard way, in the end, we all learn.

This time I’ve learned it the hard way with one of the most common and well known diver, the 62-6198 so I am writing this lines in order to help some potential vintage Citizen collector looking to buy a genuine one.  Read about the wonderful Citizen 150m HERE.

I already wrote about the original – fake dial for the Citizen bullhead octagonal chronograph. You can find that HERE.

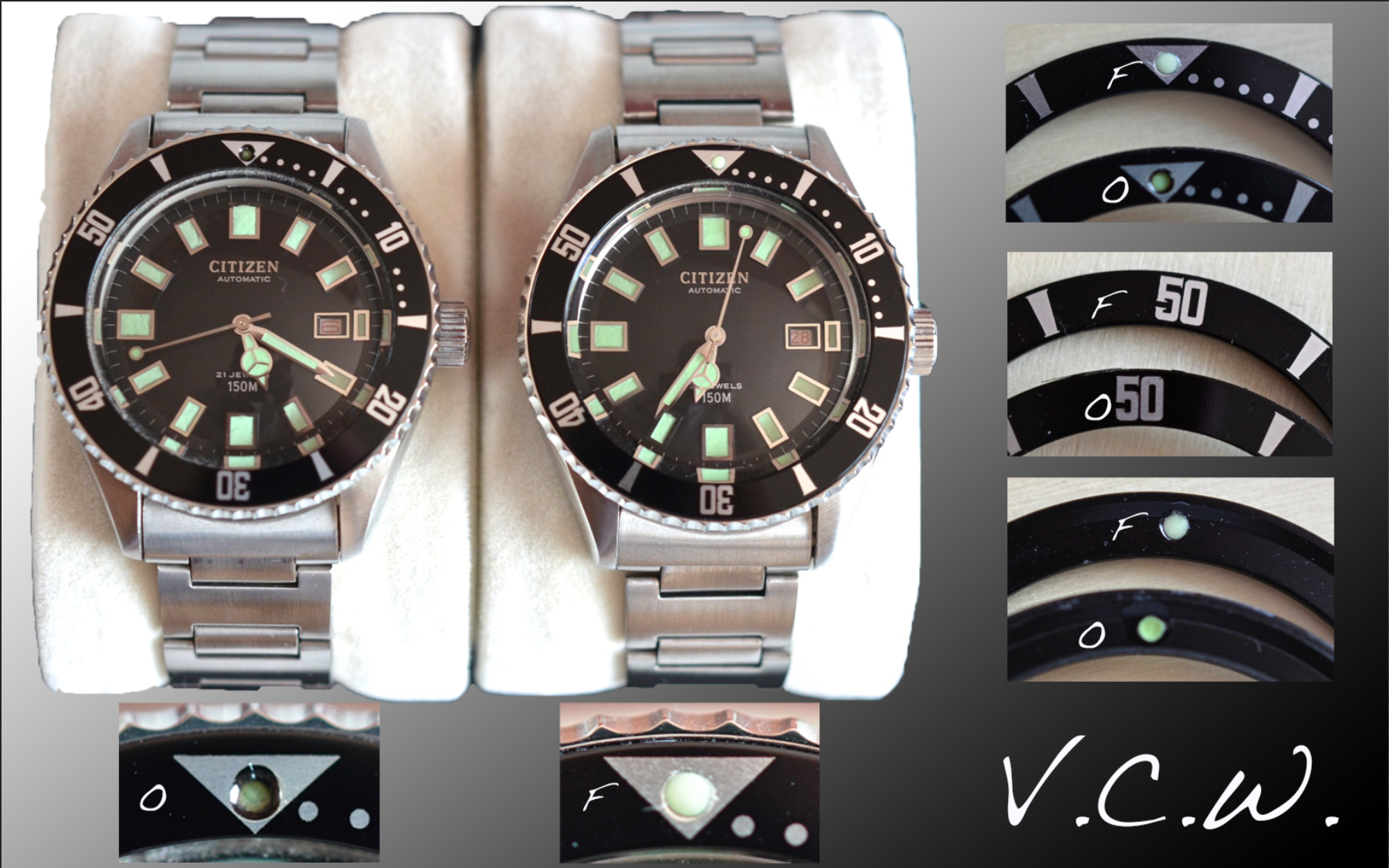

vintage citizen diver bezel 150m original fakeSo, lets see what sets them apart:

1 – First of all you should look at the luminous pearl. It should be matching the luminous material of the hands and the hour markers.

2 – The pearl should be dipped in the bezel, nor raised.

3 -The pearl, again should look a little darker on the original, not that clear and bright as the fake one.

4 – The triangle should be with clear borders, and on the top part it should be more space. The fake one has the upper part of the triangle almost touching the outer border of the insert.

5 – The numbers are not matching, take your time to spot the differences!

6 – Take the bezel insert of and see the color of the pearl on the other side.

As a conclusion: Take your time, do your homework, don’t assume you know it all and enjoy Vintage Citizen Watches!

P.S. Thank you Jack! 😉

by

Vintage Citizen Diver – Seven Star 4-526970Y


This is not the usual diver, but it has the lovely look of one. In fact this is one of the first “divers” made by Citizen, the precursor of the famous Citizen real diving watches.

It is the Parawater model but it has no specific depth rating. The production date of this particular watch is February 1970.

citizen seven star diver

The case is made in stainless steel, thin, with a bidirectional friction type stainless steel rotating bezel. It measures 38mm wide. It has a domed acrylic crystal that gives a lovely look to the black, matte dial. The crown is marked “C” as most of the early Citizen watches did and it is not screw type.

The dial is simple, black, with luminous squares as hour markers. At three a clock it has the day-date window. Sundays , as usual, are written in red. The hands are common to Seven Star range at the era. The second hand has a luminous dot at the tip.

Citizen vintage diver seven star

The movement is the the calibre 5204 with 21 jewels. It runs at 28,000 bph and it doesn’t hack. The date changes in the second position of the winding crown and the day changes by advancing the hands pass midnight.

The bracelet is made in stainless steel, but I doubt the fact that is original to the watch. It fits the watch really nice.  The clasp, is as usual, signed “Citizen”.

Conclusion – Beautiful piece of history, a precursor of the real Citizen diving watches, the “missing” link between THE Parawater watch and the real diving watches made by Citizen.

Read more about Citizen diving watches here:  https://vintagecitizenwatches.com/diver-vcw/



by

Vintage Citizen Divers 150m: 68-5372 , 62-6198, 52-0110


It is my pleasure to introduce to you my three vintage Citizen 150m divers: 68-5372 , 62-6198, 52-0110.

Even though they might look similar at the very first sight, they are different models.

vintage citizen divers 150m 4-740131Y , 4-600851Y , 4-820789Y

They are all in excellent condition, the first two are actually NOS, the third one is not, but really well kept. The first one is made in 1971, the second in 1974 and the third in 1978. Read about how to date a Citizen watch here: https://vintagecitizenwatches.com/2014/02/23/dating-a-vintage-citizen-watch/

Lets start with the similarities:

All three are divers, rated to a respectable depth of 150m water pressure. They share the same case (4-740131Y , 4-600851Y , 4-820789Y ), with the same screw-in large crown. The bezel is bidirectional friction type. The sides of the cases are polished and the frontal surfaces are brushed in a similar manner. They are 40mm wide with 20mm steel bracelets at the lugs. Thew share the same mineral crystal, concave on the inside, with a flat surface, that magnifies the beautiful black dials. The movements are automatics with 21 jewels. All three display the date at 3 o’clock and have a central sweeping hand with a luminous dot. The hour indexes are applied rectangles, large, and filled with luminous material. The hands are similar in shape (Mercedes type hour hand and spade minute hand).  The three bracelets feature a diver extension link beneath the clasp. So, they are very much alike, but, let’t take a closer look!

vintage citizen divers 150m 68-5372 , 62-6198, 52-0110

The main difference is a small detail that I like a lot: The first one (made in 1971: 68-5372) is marked “parawater”. read more about parawater here: https://vintagecitizenwatches.com/2013/12/26/citizen-parawater-citizen-parashock/. All the other differences emerge, the way I see things, from this small detail (the date of manufacturing). The era of “parawater” was different. The first watch is the only one with a solid bracelet links, the others have folded links. The date window is better placed on the dial due to a different movement size on the ’71 watch. The hour hand and the minute hand are longer. The dot at the end of the second hand in similar to the first two models and I like this a lot. The bezels have different thickness, due to different crystal height.  The thinest being the first one, getting thicker and thicker, translating to an overall watch height difference. The way the crystal fits to the case is very complicated at early models, with steel rings, rubber seals, and a lot of parts. The third one has the crystal fit by pressure ring plastic gasket. The way I see things Citizen tried to simplify production and make it mode profitable, but I like it complicated. Looking at the bezel inserts, the last one has markers on every minute. The middle one features an applied Citizen logo on the dial made from individual letters. The 1978 watch has a black digit date wheel. By contrast the other two have red digits. As a final touch, the printing on the dial is unique to every one of the three.

Citizen vintage diver 150m

The casebacks are similar but with different markings. Removing the caseback we have the chance to see the movements. Three distinct movement, automatics, with 21 jewels. The most striking feature is the fact that the first watch movement is filling nicely the case, being a suited size (this is the reason for the date position on the dial). The later two have smaller movements. At least the middle one has a steel ring around it to fill the useless space. The latest one has a cheaper plastic ring. All three movements have quick date setting, and offer hand winding ability.

year        model        case no         movement

1971       68-5372        4-740131Y        7470

1974       62-6198        4-600851Y      6000 (marked 6001)

1978       52-0110        4-820789Y      8210A

 As a conclusion, I want to say that even though I admire the first one and really appreciate the second one, the third (the only one that is not NOS) is the one I love the most. Nevertheless, I will not disclose the reason why. 🙂 Having one vintage Citizen diver 150m is a joy, having three is a bless.

UPDATE – the second hand I have seen to be either lollipop style with the ball at the end of it or not. For any of these models. I have yet to find catalogue pictures to be 100% sure about it.

read more about vintage Citizen divers here: https://vintagecitizenwatches.com/diver-vcw/



by

Citizen ladies diver 150m model 54-0919


Every man needs a real diver watch, and every woman (either a girlfriend or a wife of a true watch enthusiast) is going to get one eventually. 🙂

This is the vintage Citizen ladies diver. This is the ultimate one, the real one.

vintage ladies Citizen diverThis model has all the specifications that define a diver. My better half says it is even better than the men model of the same time frame, witch is the 52-0110 presented in the picture. I tend to agree with her (well, I have no choice but to agree with her 🙂 ). Read about my watch here: https://vintagecitizenwatches.com/2013/12/24/citizen-automatic-diver-150m-52-0110/ Mine was made in 1978 and hers in 1980.

The case is small,  made in polished stainless steel but with a brushed face that doesn’t reflect light the same way as a polished surface would. This is mandatory for a diver so the time can be easily read without light interference. Compared to the men model, this one has some other elements that gives it a nice diving touch: crown guards, lug holes (for easily changing the strap) and unidirectional rotating bezel (60 clicks). By contrast, the big brother has only a friction type bidirectional bezel, no crown guards and no lug holes.  The water resistance is similar (150m) and both of them have a large screw-in crown, an easy grip bezel with a beautiful aluminum insert and a thick flat mineral crystal. The underside of the crystal is concave, magnifying the hands and the dial.

The dial and the hands are very similar. Both the ladies watch and the men watch have a black dial with applied luminous hour markers. The hands are similar (Mercedes hours hand, spade minutes hand and a seconds hand with a luminous dot close to the tip). The small brother has a day and date window. Both of them are marked in the same way: Citizen, automatic, 21 jewels, water resistant, 150m. My girlfriend’s watch has a raised ring part of the dial with seconds markers. That gives a great depth feeling to the entire watch face.

Citizen ladies diver 150m model 54-0919The movement is small too, suited for the small case. It is an automatic, 21 jewels movement. Citizen named it calibre 6601, and can be found in a variety of ladies watches. Not much to say about it except the fact that it displays both the day and the date, can be hand wound and a particularity is the fact the date changes by pulling repeatedly the crown.

The strap is the original (pretty impressive for a 30 years old watch), mint condition rubber, with a stainless steel buckle. It is very comfortable, very easy to find the perfect adjustment hole. The width at the lugs end is 14 mm, but it integrates really well with the flowing case design. I think it would look good on nato (still looking for one so small) and i have already ordered a mesh stainless steel bracelet for it.

Citizen ladies diver 150m model 54-0919 citizen 150m

As a conclusion, all I can say that my diving watch found it’s better half and so did I. 🙂

Read more about vintage Citizen divers here:

https://vintagecitizenwatches.com/diver-vcw/

by

Citizen compressor diver – Seven Star 4-520017Y


Let me introduce to you a beautiful, NOS, vintage compressor style diver that has just the right amount of pure class.

A compressor case is defined by the fact that the rotating bezel is inside the case, under the crystal and it is turned by one of the crowns, rather than directly by hand. Gary, a reader, provided a piece of information about Compressor cases that I would love to share with you:

“These are beautful watches and I enjoyed reading about them but I must correct your assumption that they are compressor watches. Its a common misconception that if a watch has two crowns and an internal bezel, it must be a supercompressor but infact Compressor and Super Compressor watches are defines by the company which made the cases and held a patent for their design. These cases were made by the specialist manufacturer Ervin Piquerez S.A. of Switzerland. No Japanese manufacturer used EPSA Compressor cases. Information about Compressor cases is not hard to find. The link below shows the three types of Compressor case, including the Super Compressor from which your Citizen watches are inspired. True Super Compressors are typically identified by a crossed hatched design on the crowns, a diver helmet logo on the case back or inside the case back, but always, they have the brevet (patent) number on or inside the case back. http://wornandwound.com/2014/03/24/guide-super-compressors/”

NOS means New Old Stock – a watch that was not worn and it is in excelent condition after all this time (45 years old).

citizen compressor diver seven star parawater

Just like the other compressor diver I have presented here : https://vintagecitizenwatches.com/2014/01/18/vintage-citizen-compressor-diver-4-520343-y/, this one is also made in 1969. By contrast, this one has a more classy, elegant appearance.

The case is large, made in polished stainless steel, with a brushed frontal surface. Looking at it from the side, the case seams slender, thick in the middle, and arching down all the way to the end of the integrated lugs. The mineral crystal is slightly domed in order to be better integrated in the overall design. The crystal is secured by a thin, polished, elegant bezel. The sides and the frontal surface are well delimitated by a carefully made polished chamfer. The twin crowns are not signed. One of then, the upper one, turns the bidirectional internal bezel and the other one is connected to the movement. The case-back displays the usual information – material, date of manufacture, model, movement, and parawater. Read about parawater here: https://vintagecitizenwatches.com/2013/12/26/citizen-parawater-citizen-parashock/

The dial is dark-deep black,  very simple but not simplistic at all. Under magnification one can see that a lot of attention was placed into details. The writing is white, also on the black date and the black day wheels. The date is on 3 o clock inside a polished frame and the day is at 9 inside an oval, carefully made window. The only tint of color is the lettering for Sunday.  The inner rotating bezel is also black with white writing. The hour markers are applied with luminous material in the center. The hands are also polished, faceted with luminous material as well.

Citizen diver Seven Star 4-520017Y

The movement is the usual automatic Citizen calibre 5270, with 21 jewels. The calibre number is engraved, as usual, under the balance wheel.  It is winded by a black rotor that compliments the dial on the other side in a fortunate manner.  It is a common movement used in a variety of models, not only divers making it rather easy to repair with available parts. It is reliable and offers hand winding possibility. The date changes in the second position of the winding crown (first position for winding, third for time setting) but the day changes only by passing midnight with the hands. The corespondent crown for the movement is the one at 4 o ‘clock.

The bracelet is nothing less than a piece of art. I think this is my favorite Citizen design. It is made in solid steel, three thin polished connectors and  brushed large links. It doesn’t get better than this! It has a pleasant tactile feel and a nice weight. One more thing that can not be described into words is the sound of the links touching each other… pure music. The clasp is the usual type, signed Citizen.

Citizen compressor diver - Seven Star 4-520017Y

Al things considered, this is the best diver for a gentleman, ready to be worn at the beach or with a suit during a corporate meeting. Decent water resistance (nor really made for submerging, but good enough for daily jobs) and understated elegance placed together for one of the best Vintage Citizen All-rounder.

Read more about Citizen diving watches here: https://vintagecitizenwatches.com/diver-vcw/

by

Seven Star Citizen 100m diver 67-5776, APSS-52904 Y


This was one of the last years (1971) that Citizen used the term “parawater”. Unfortunately it came to an end and this particular model was one of the last parawater divers. It marked the end on an era. What can I say, I just love this Seven Star – Vintage Citizen Diver!

citizen diver 67-5776It was made in four dial color variations: black, blue, silver and orange, my favorite is the orange. This era was so colorful and full of life and it is also true when speaking of Citizen watches.

Update 2018 April:

Kim, aka WVE from The Seiko and Citizen watch forum, was king enough to let me use his pic so you can enjoy them. Thanks Kim, lovely collection you have there! 😉 Blue, Silver, Orange and Black dial!

The case is the well known Citizen cushion shape having a diameter of 44 mm without the crown. It is made in stainless steel and so is the caseback and the bidirectional frictional type bezel. The bezel insert is aluminum? painted black with white numbers and markers. At 12 there is a luminous dot inside an upside down triangle. The entire case is polished, except for the frontal surface that has a circular brushed finish. The acrylic crystal is raised and flat. I love the way the light  bounces back from underneath an acrylic crystal! The water resistance is 100m, maybe because the signed CTZ crown is a non screw in type. But… 100m is plenty for normal use.

blue dial citizen diver 67-5776

The dial is made from two distinct pieces, glued together; an outer ring is sitting higher than the dial itself and has hourly numerals from 13 to 24. A silver ring delimitates the two surfaces and has minute markers. The lower part has raised polished hour markers with luminous material. The spade shape hands have luminous centers as well. By contrast, the second hand is simple, entirely polished. At 3 o’clock the watch has the day and date display inside a polished frame that connects the two parts of the dial. The usual Citizen logo is at 12 and at 6 it reads: “para 100m water, automatic, 21 jewels”.

citizen 7270 automatic 21 jewels

The movement is the 7270 calibre – simple, reliable, automatic with 21 jewels and beating at 21,600bph. As usual with Citizen, the automatic movement can be hand winded. It has jewel bearings for barrel and a power reserve of 41 hours. It features a quick set date and the day changes from advancing from 20 to 0:30. The sweeping second hand doesn’t hack.

The bracelet is a common Citizen design called bead of rice that fits the case shape really nice. I have seen other designs (see the cool one on my NOS APSS-52904 Y below) but a lot watches found today have nato replacements or rubber straps. Certain leather straps look good on it too. It is easy to find a bracelet or a strap because it has 20mm between the lugs and a look that makes it easy to wear on anything.

vintage citizen 100m 67-5776

Update 2018 April:

It seems that the models above are export models since the domestic ones, for Japan market, are marked “Seven Star APSS-52904 Y” and have a slightly different dial. I managed to find a NOS one and here it is, also side by side with the orange export version. The case back is also different, and so is the winding crown. Take a look. UPDATE to the info above from my fellow collector Stephen: It seems the APSS52904Y would be found in the slightly earlier 61-5773 which uses the 52 movement. That model also uses a different, smaller crown.

And side by side:

Conclusion: Beautiful watch, warm, colorful and full of life.  One of the last “parawater” divers made. A real joy to wear and look at.

Read about other Citizen divers here: https://vintagecitizenwatches.com/diver-vcw/

Read about “Parawater” here: https://vintagecitizenwatches.com/2013/12/26/citizen-parawater-citizen-parashock/

by

Looking for the “Holly Grail” watch


What’s that The “Grail” watch?

The holly grail watch

Well… it is the watch that rumor has it that exists but can not be found. You look for it years after years and from time to time you think you find it, but than you realize it was not THE one, but only some pale imitation. You look for it again and again and again. Sometimes you dream about it, sometimes you think you see it strapped to someones wrist but time after time you find out it was just a mind trick. Your eyes see only what your mind fantasizes about.

One glorious night, after hours on web searches, you find a post with pictures attached to a post in a language you don’t understand. That is the real watch! It exists!

Your heart stops; than it races like crazy! With trembling fingers you press the keys on your laptop and start writing a message to the user that posted the pictures, hoping for an answer…

Maybe… Maybe… Should you allow your heart to hope for an answer?

(feb 2014) Let us pray for THE Holly Grail!

UPDATE (oct 2014) I found not one but two owners of this model. One owner doesn’t sell it (yet) and I am still waiting for an answer from the second one. I hope he still has it and will sell it to me. 🙂 Well.. he is not selling it. 😦 The search is still on.

UPDATE (jan 2015) The wait is long, too long! Is it fate? Is it a coincidence? I have to wait! Meanwhile I found out that the two watches I told you about in Oct are not 100% original. Both of them have aftermarket bezels and bezel inserts, and one has a non original crown too. They don’t have the original strap. (one does actually) The closer I get the longer and more difficult the wait gets! It’s been one year since I wrote this article and I feel…

UPDATE (feb 2015) The hunt is over! I have it in my hands! Tired and extremely happy! Read abut THE Citizen HERE!

Thank you all! 🙂
