Citizen 8100 Chronograph 67-9151 Restoration


One of my favorite Citizen chronographs is the 67-9151 model. I wrote before about a custom project based on this model HERE.

This time I will write about the all original one.

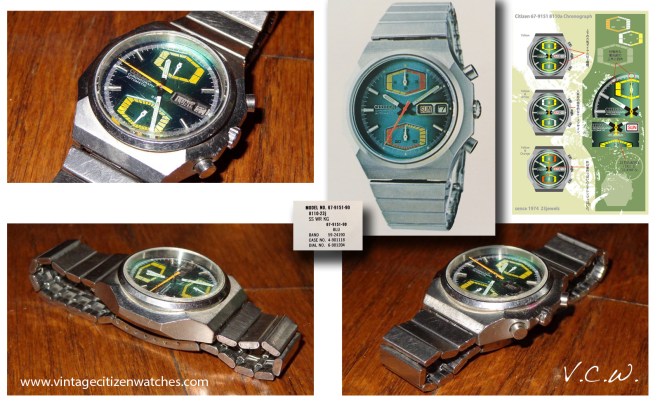

The watch was found in a bad shape, really scratched and dirty.  But even underneath that scratched crystal there could be easily observed the beautiful original green dial. For this model there are available only three dial variations, as seen in the catalog picture below.  The caseback was never removed in the past 30 years. The movement stopped a long time ago and the pushers were not moving.

citizen-67-9151

The restoration process started by removing the caseback and the dedicated bracelet. The design of the stainless steel bracelet fits the  octagonal watch case perfectly being made for this model only. After removing the bracelet and the clasp, it was time for the movement to come out.

The calibre 8110A was serviced and now it is running strongly, as it should. It is a flyback mechanism and features a day – date complication too. It is an automatic movement,  with 23 jewls and hand winding capability. It was produced by Citizen starting from 1972. It is a vertical clutch chronograph (beating at 28.800 bph) with column wheel and fly back function. The fly back function means that you can reset the chronograph while in motion and it will start again without needing to go the entire process of pressing stop-reset-start. So, one push can do all of this. A particularity for this movement is that when you want to change the day you should pull the crown to second position (for changing the date) and push and release the reset (1 o’clock) button.  The column wheel/vertical clutch design of the movement advices to leave the chronograph running for most of the time (this way you can also see the beautiful sweeping central second hand in movement), but from time to time it should be stopped.

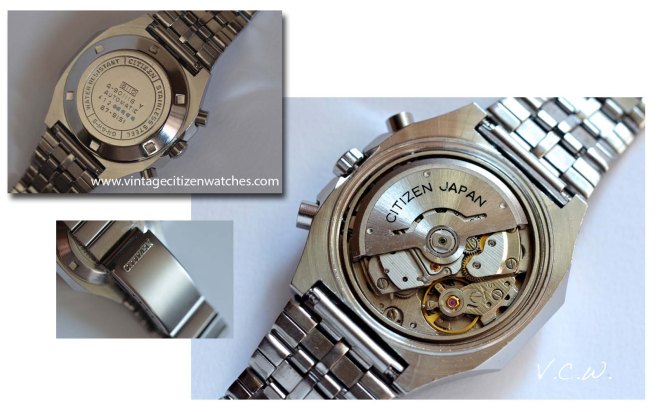

citizen 67-9151 chrono

The dial is the main attraction of the watch, and that says something about it. The overall sharp, angular shape of the watch is mirrored in the mesmerising details. The green color is not plain at all but lighter and shinier in the centre and darker at the 3 and 9 sides. The chronograph sub-dials are hexagonal with 3 variations: yellow-white, yellow-orange and all yellow.  The seconds hand for the all yellow version is yellow too while for the other two is orange.

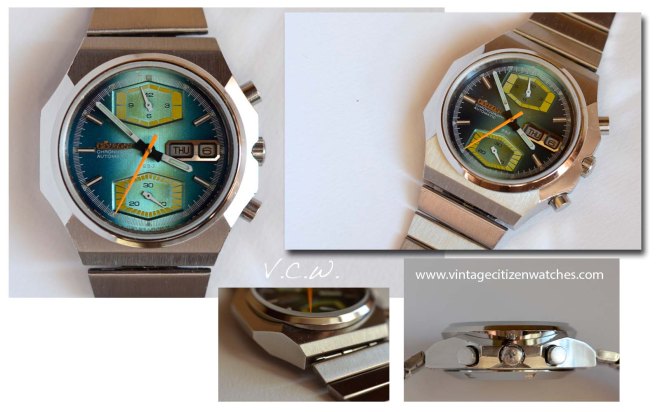

vintage citizen chronograph 8110

At the end of the restoration we have a newly brushed/polished strap and case, fully functional movement, and a new mineral crystal. What a beautiful watch!

Read more about Citizen chronographs on this page:

https://vintagecitizenwatches.com/chronograph-vcw/

by

Citizen Leopard 36000 – model 67-2050


When you say the word Leopard next to Citizen you know this is a special one.

Why is is special? Read on and see. 🙂

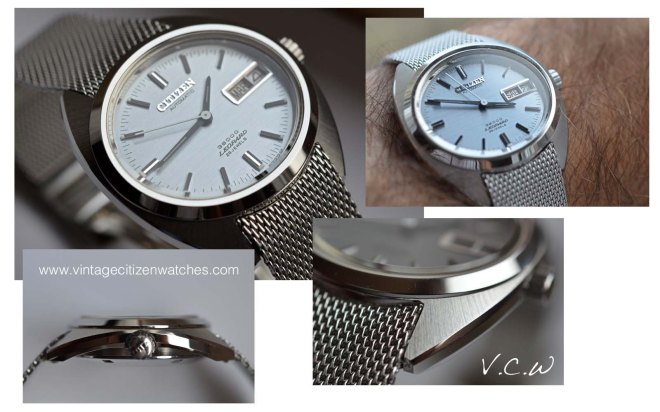

citizen leopard

The first thing you notice when holding the watch is the beautiful mesh stainless steel bracelet that fits the case as a high end modern watch would. The case is stainless steel too and has an interesting oval shape, with integrated lugs. The bezel is polished and so is the entire case except for the frontal surface that has a radial brushed finish. The crown is simple, signed CTZ. Another detail is discovered when seeing the watch from the side: a beautiful arched shape, following the wrist of the lucky wearer.

The dial, seen through the oval mineral crystal, is grey-blue, sometimes more one or the other depending on the light, and very elegant. The hour indexes are applied and so is the day date window frame. The hour and minute hands are dark grey and the seconds hand is white. Why is it white? Because the second hand is special. It is special because on the dial except for the applied logo Citizen and Automatic at 12, at 6 it is written 36000, Leopard, 28 jewels. And this says something about the movement. 🙂

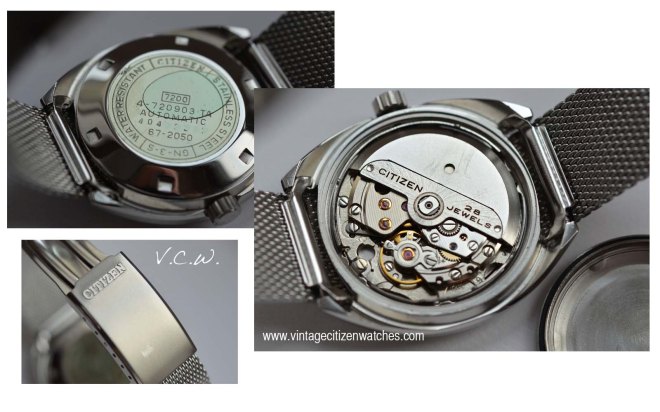

citizen leopard copy

The calibre inside is the Citizen hi-beat parashock 7230, running at 36000 bph.  It has 28 jewels and a beautiful white sweeping central second hand that hacks, it can be winded by hand also and has a quickset date feature. The day is set by advancing the hour hand pass midnight.

A beautiful elegant watch and I consider myself to be very fortunate to have found this time capsule in a NOS state, even though it is made on April 1974.

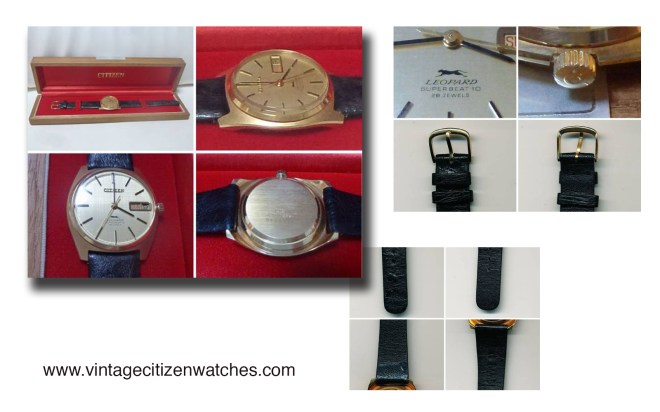

later edit: I found the watch in the next picture on yahoo japan so the pictures are not mine but belong to the seller. This is the first solid Gold superbeat 10 Leopard I see. There are also a few models in stainless steel and some gold plated Leopards too, but this is the first I see in solid gold. Needless to say it is in perfect condition. The selling price is JPY 350,000.

gold citizen leopard

Here is a scan made by me of the Citizen calibre 72xx from a vintage Citizen catalogue. I hope it helps understanding a little better the inside of these beautiful watches.

Citizen leopard calibre 7200 36000

Read more about a vintage Citizen Leopard POCKET WATCH here:

https://vintagecitizenwatches.com/2014/02/10/citizen-leopard-36000-pocket-watch-67-2192/

And read about The 28800 Citizen Leopard here:

https://vintagecitizenwatches.com/2015/01/17/citizen-leopard-28800-4-720032ta/

by

Vintage 1968 Citizen College Alarm


Citizen has a beautiful range of vintage alarm watches, some of them with date, some of them more simple, like this one, without a date.

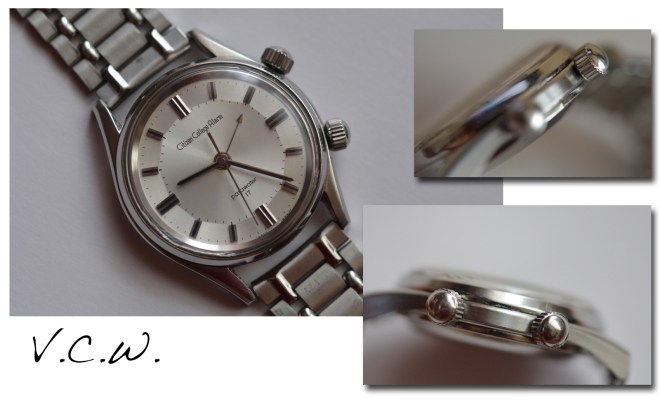

vintage citizen alarm

Here is the no date version of the Citizen alarm, the Citizen College Alarm. It is marked Parawater and this fact, along with the serial no, is dating it to March 1968. The design is simple and clean, the case is made in stainless steel, with a domed acrylic crystal. Read about how to date a vintage Citizen here.

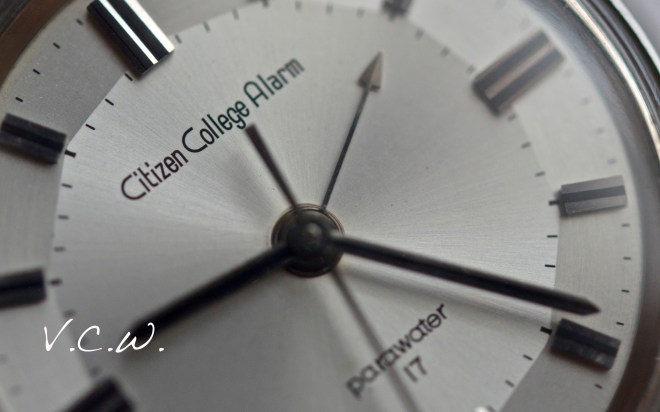

citizen alarm vintage

One of the best feature of the watch is the pie-pan dial look. On closer examination the dial turns out to be flat but the two types of finishing and tone gives it this lovely appearance. The central part has a silver sunburst effect while the outer ring has a circular one. On this circular part we can see the polished applied  hour markers that have a black painted line or two (for 12, 3 6 and 9). It is marked in black writing: “Citizen College Alarm” at 12 and “parawater 17” at 6. The 4  polished hands are for showing the time and the shorter one, with a triangular tip is for the alarm. The hour hand (as well as the minute one) has a a central longitudinal black line, to match the hour markers.

The case is made in stainless steel, with 38 mm diameter, the lugs are elegant and the two unsigned crowns are easy to operate and still very well suited to compliment the elegant design. The bracelet and the clasp is made in stainless steel too.

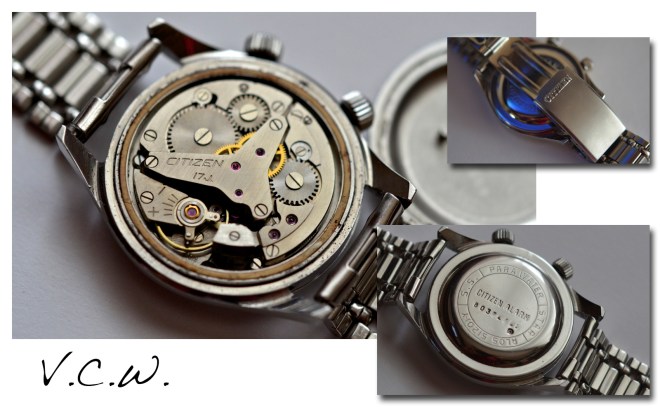

citizen college alarm vintage

The movement is the Citizen calibre hand winding 9812 (no date), 17 Jewels, 18000 bph. The crowns are one for the time and the one for the alarm. The crown at 2 o’clock in first position is winding the alarm and the alarm is deactivated. If you pull it in the second position you can set the alarm (counterclockwise) and the alarm is activated. Pressing it while the alarm is ringing will stop it. The crown at 4 will wind the watch and pulling it out will set the time. The alarm will ring for 13-16 seconds. The movement has a power reserve of about 40-45 hours and it runs great if winding it once a day. It is Parashock.

Read more about another beautiful Citizen alarm, the Citizen Alarm Date here.

by

Citizen Parawater – THE Parawater


After presenting the first watch manufactured by Citizen, the beautiful pocket one (read about it HERE), it is time for another milestone in watchmaking. This time, the first Japanese waterproof watch, THE Parawater! This makes it the grand, grand father of all the Citizen divers we all love so much!  Please note that this was not intended for diving, but it was up to the task for swimming!

In 1959 the company produced the first Japanese water-resistant wrist watch. This was the “Citizen Parawater”. It was powered by the Citizen Cal. 920(2B). It was produced with  19, 21 and 23 jewels. Soon after, the Parawater completed two trans-Pacific tests and one in the Sea of Japan. The result, needless to say, was positive. As time passed Citizen was growing as a company and exported more and more watches, so (unfortunately IMHO) the term “Para Water” was changed to the universally recognized (an boring)  “Water resistant” somewhere around 1970-1973.

Back to this particular one! The line chosen to be modified so that it will become water protected was a success already, the Deluxe. Citizen changed the design of the case, added rubber seals and greatly modified the tube and crown assembly. By doing that and after a lot of research they were able to stand by their product in public demonstrations.

Citizen Parawater Deluxe

After intensive search I managed to find this particular watch, in an non working state, the bracelet and the clasp was destroyed beyond restoration and the crystal was badly scratched, but what an awesome find! I had to take the plunge! (pun intended 🙂 ) This is how I got the pictures from the seller in Greece:

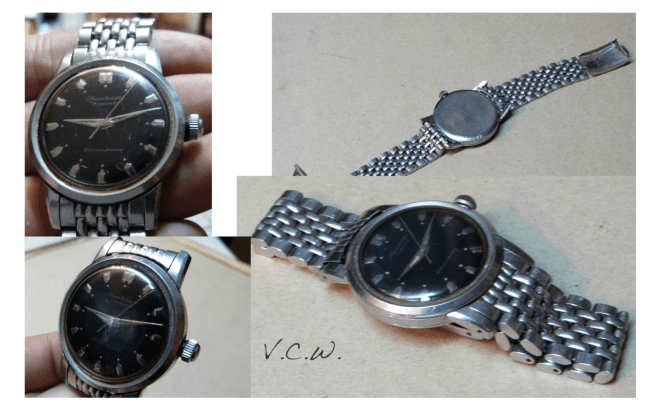

Citizen Parawater

Now, after a long time deciding how invasive the restoration should be I went with a bracelet swap with a similar design from the same time frame by Citizen, a light crystal polish and I got the movement running again.  This is the end result:

Citizen Parawater Deluxe

Interesting facts: The black dial has lume dots and the hands are also with luminous material, making it very rare (the only one I saw) and very beautiful. Another detail is the fact that the entire dial in printed and there is no applied logo.

The caseback has the inscription: “All stainless steel”, “Antimagnetic”, “Parawater”, “STAR”, “Citizen Deluxe” and the serial no. By the way the watch is made in 1959, making it one of the very first pieces.

Beautiful lug holes for easy bracelet replacement.

Don’t forget to magnify the last picture for more details!

Conclusion: I am so happy to introduce to you this wonderful piece of history and I hope you like it as much as I do! The watch found a new home with Daniel in Germany and for sure it is a great home! Enjoy it Daniel!

Later edit (2015):

I here present to you my keeper Para Water, that I found this year in Hong Kong (thanks Anthony! 🙂 ) Excellent condition, fully working 100% original, made in 1961.

parawater citizen deluxe

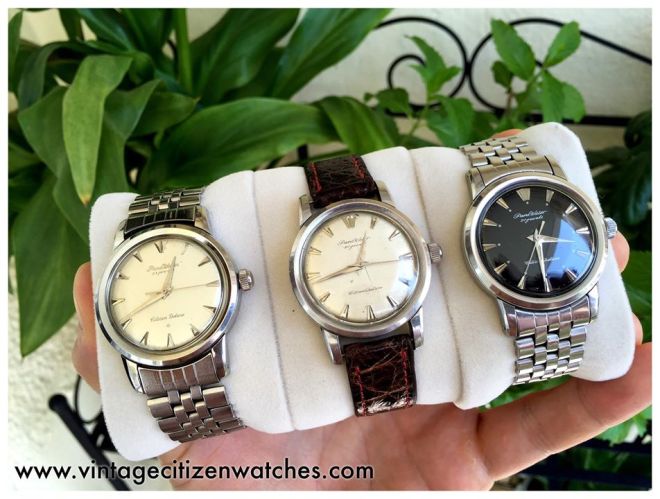

Here are the three dial variants, Two white ones (one with a star, the other without) and the black one.

parawater citizen

Update 2016 APR

Here it is a commercial advertising sign from the period:

the first parawater citizen

Read more about vintage Citizen divers HERE
