Chronograph


Manual and automatic vintage Citizen chronographs.

Citizen had three gorgeous chronograph movements. All three are fly back. One of them is hand winding and two are automatics developed on the same base model. Citizen calibre 5702 has  21 jewels. It beats at 18,000bph. It is the first chronograph and the only hand winding chronograph movement that Citizen produced starting from 1967 up to around 1972.

  1. There is also an automatic one with a two variations: 8100A – has only a minute totalizer.
  2. The 8110A is basically the same as 8100A but has a hour totalizer too.  The date is not quick set but changing by advancing the hour hand.

The first (in the entire world) automatic chronographs are these:  The Zenith El Primero (1969), the Seiko 6139 (1969), the Heuer/Hamilton-Buren/Breitling/Dubois-Depraz caliber 11 (which was a Dubois-Depraz 8510 chronograph module on a Buren 1281 tractor, 1969), the Lemania (1970), the Citizen 8100 fly back (1972), and the Valjoux 7750 (1974).

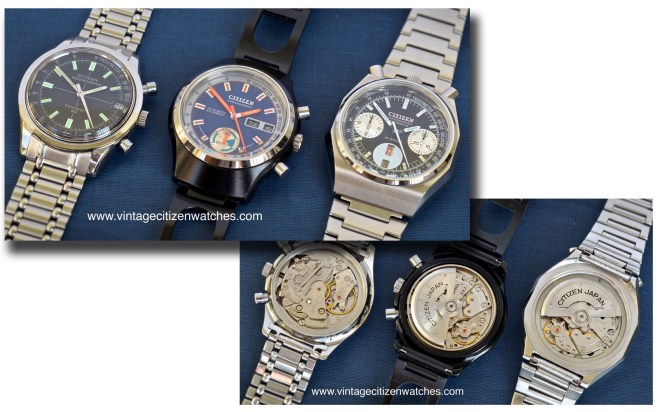

vintage citizen chronograps

Both Citizen automatic variations have 23 jewels with hand winding capability. They were produced by Citizen starting from 1972. They are a vertical clutch chronograph (beating at 28.800 bph) with column wheel and fly back function. They have a day and date indicator. The fly back function means that you can reset the chronograph while in motion and it will start again without needing to go the entire process of pressing stop-reset-start. So, one push can do all of this. Of course that if you want to stop it you can go the classic stop-reset way. A particularity for this movement is that when you want to change the day you should pull the crown to second position (for changing the date) and push and release the reset (1 o’clock) button. It is 27 mm wide and 6.9mm high. The column wheel/vertical clutch design of the movement advices to leave the chronograph running for most of the time (this way you can also see the beautiful sweeping central second hand in movement), but from time to time it should be stopped.


For more information follow the links below:

vintage citizen chronograph challenge timer automatic 8110A

Citizen automatic Chronographs – Challenge Timer





DSC_0093 copyCitizen Bullhead vintage Chronograph model 67-9356







Citizen bullhead 67-9356 restoration & service





citizen vintage automatic chronograph speedy 67-9313

Citizen chronograph “Speedy” – 67-9313





citizen bullhead chronograph vintage

Citizen Bullhead 4-901096-K – Green dial





Citizen vintage chronograph 8100A

Citizen Challenge Timer cal 8100A





citizen walter wolf

Citizen Walter Wolf Racing Chronograph





citizen 8110a chronograph

Citizen Chronograph Calibre 8110A





citizen recordmaster rally custom

Citizen Recordmaster Rally Custom Chronograph





recordmaster citizen watch



Citizen Recordmaster Chronograph 63-0110





Citizen chronograph automatic

1974 Citizen Automatic Chronographs print







vintage citizen chronograph 8110

 Citizen 67-9151 Fly-back Chronograph restoration







vintage citizen automatic chronograph 8100

Citizen automatic chronograph model 67-9631







Citizen automatic chronograph 8110A  Vintage Citizen Flyback Chronograph 67-9151 calibre 8110A





Original dial for Citizen Bullhead and fake aftermarket dial

How to spot a Fake (aftermarket) dial for Citizen Chronograph





Vintage Citizen case finishing





citizen recordmaster 63-0110

VIDEO – Citizen (manual wind) Recordmaster 63-0110





citizen automatic chronograph

VIDEO – Citizen octagonal bullhead chronograph – flyback







citizen vintage chronograph 8110a

 VIDEO – Citizen automatic Chronograph 67-9151





citizen automatic chronograph 67-9631

VIDEO – Citizen 67-9631 cal 8100A chronograph
