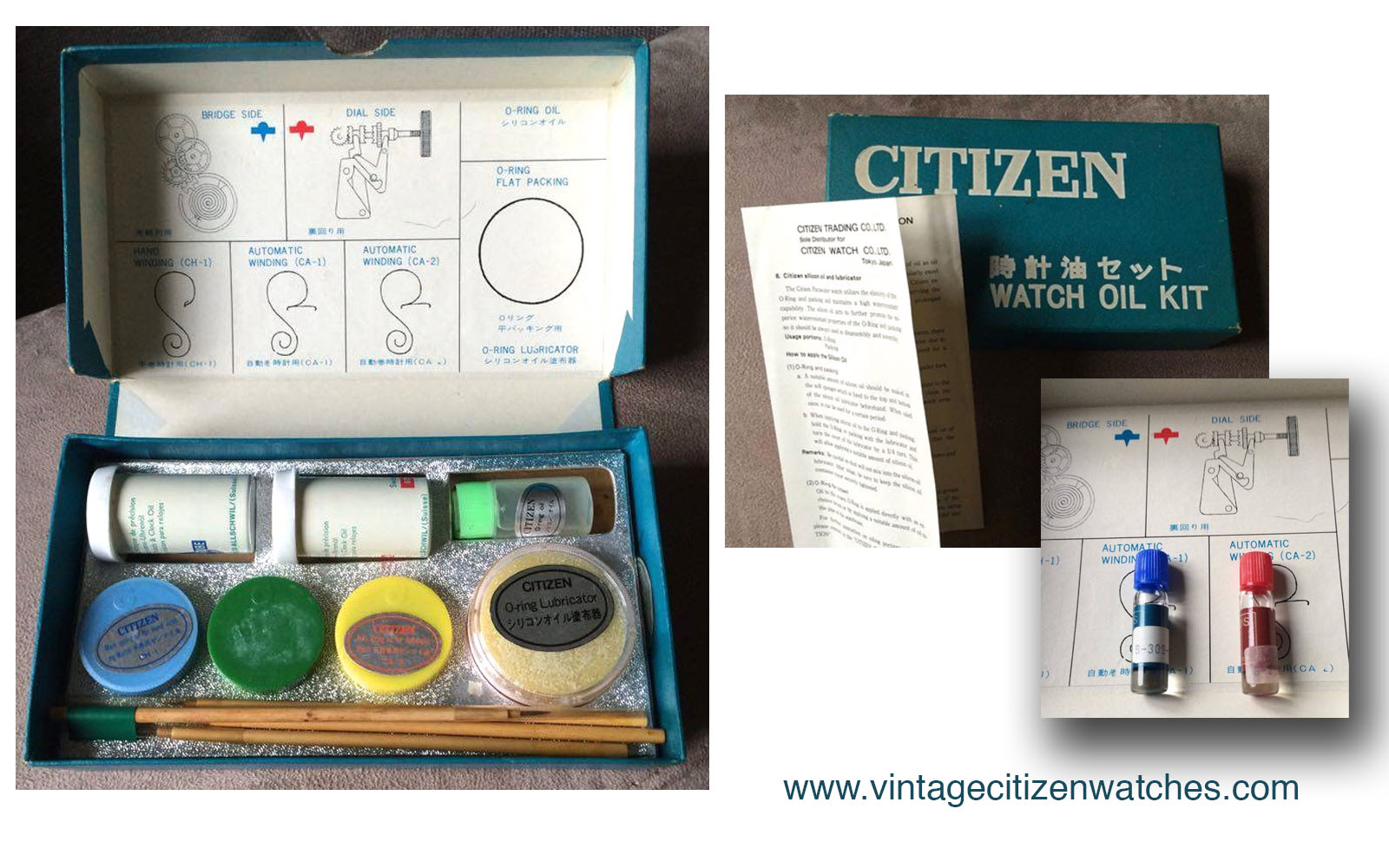

Citizen – Watch Oil Kit


My friend Hako was kind enough to provide me these photos of an interesting collectors item, the vintage official Citizen watch oil kit, used for servicing the movements. Thank you Hako!  Apart for the oils themselves, the kit has brushes and a booklet with instructions for using the items found inside the box. I will write the information written on it below.

vintage citizen oil kit service

HANDLING INSTRUCTION FOR CITIZEN WATCH OIL

Citizen has designated the following 6 types of oil as oil to be used for Citizen watches. These oils particularly excel in quality and performance. Be sure to use the Citizen exclusive watch oil on Citizen watches for preserving the superior performance of the watch during a prolonged period.

1. Synt-A-Lube oil

Since it is a compound oil of superior performance, there is no worry of the characteristics becoming inferior due to deterioration, aging, etc., regardless for it being used for a prolonged time.

Usage portion: Dial side train wheels, jeweled pallet fork, escapement.

Remarks: Use the oil by transferring a small amount to the saucer of the stand type oiler. Be sure to clean the saucer and replace the oil at least once a week even though the saucer is not dirtied.

2. Synt-V-Lube oil

Similar to the Synt-A-Lube Oil, it is a compound oil of superior performance. The viscosity is higher than the Synt-A-Lube oil.

Usage portion: Bridge side, day and date mechanism and second hand stopping device.

Remarks: Same as in Synt-A-Lube oil.

3. Citizen watch oil CH-1

The Citizen watch oil CH-1 is a mixture of special grease and special solid lubricant and there is no worry of the characteristics becoming inferior due to deterioration, aging, etc., although it may be used for a long period of time and a stabilized mainspring torque is maintained constantly.

Usage portions: Hand winding mainspring

Use the exclusive brush with blue color mark on application of oil.

4. Citizen watch oil CA-1

The Citizen watch oil CA-1 guarantees a stabilized slip torque which is particularly important for automatic winding an has been developed so a stabilized mainspring torque is maintained and used also on parts of the train wheels. The mixing rate of the solid lubricant differ from that of the Citizen watch oil CG-1.

Usage portions: Part of train wheels.

Automatic winding mainspring.

Used on Cal. Nos.:

150*, 220*, 140*, 24**, 060*, 03**, 11**, 41**, 52**, 54**and 64**.

Use the exclusive brush with green color mark on application of oil.

5. Citizen watch oil CA-2

The Citizen watch oil CA-2 has been developed particularly for use on Citizen automatic wrist watches which have their mainspring torque increased. Its composition differs entirely from that of CA-1 and is a compound oil excelling in stability with no oil flows and is suited for heavy loads.

Usage portions: Automatic winding mainspring.

Used on Cal. Nos.:

72**, 74**, 76**, 77**, 66**, 65**, 60**.

Use the exclusive brush with yellow color mark on application of oil.

6. Citizen silicon oil and lubricator

The Citizen Parawater watch utilizes the elasticity of the O-Ring and packing and maintains a high watterresistant capability. The silicon oil acts to further promote the superior waterresistant proprieties of the O-Ring and packing so it should be always used in disassembly and assembly.

Usage portions: O-Ring

Packing

How to apply the Silicon Oil

(1) O-Ring and packing

a. A suitable amount of silicon oil should be soaked in the soft sponges which is fixed to the top and bottom of the silicon oil lubricator beforehand. When oiled once, it can be used for a certain period.

b. When applying silicon oil to the O-Ring and packing, hold the o-Ring or packing with the lubricator and turn the cover of the lubricator by a 1/4 turn. This will allow applying a suitable amount of silicon oil.

Remarks: Be careful so dust will not mix into the silicon oil lubricator. After usage, be sure to keep the silicon oil container cover securely tightened.

(2) O-Ring for crown

Oil to the crown O-Ring is applied directly with an exclusive brush or by applying a suitable amount of oil to the pipe of the watchcase.

For further instruction on oiling portions of watches, please consult to the “CITIZEN TECHNICAL INFORMATION”

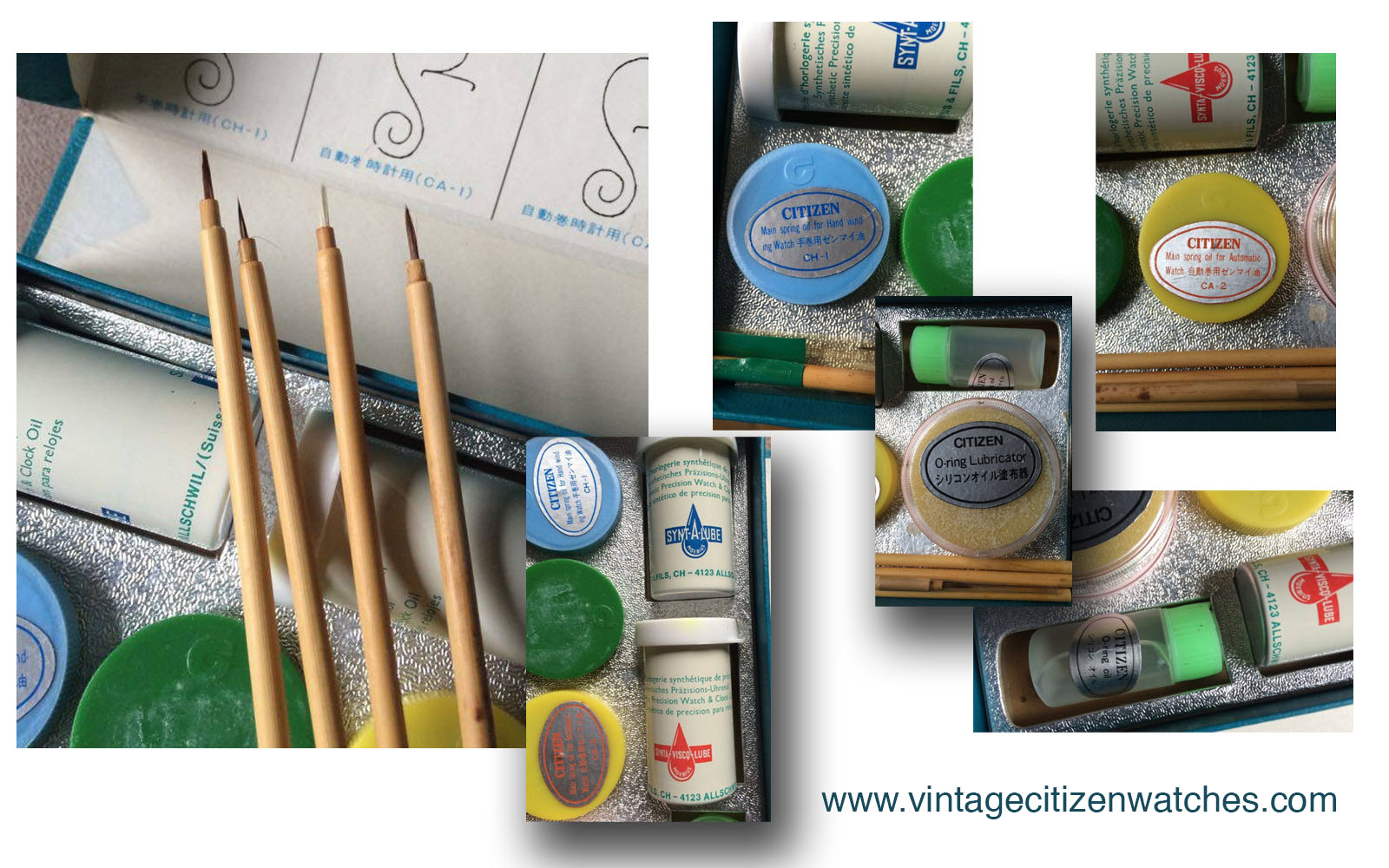

citizen watch oil kit service

I am sure you will love the info and the pictures, just like I do. It is always nice to discover new things about our passion: watches, Vintage Citizen Watches.

Read more interesting facts about Citizen HERE.

Advertisements

Citizen – Kyoto – Sevenstar Rally Custom


The Rally Custom for sure is an interesting watch and such a beautiful one too. But not marking the dial “Citizen” while having a different logo applied is somehow making it even more interesting. What is that “Kyoto” name on the dial?

Let’s start talking about the “regular” Rally Custom (as if this timepiece can even be called “regular). The model reference is 4-521358TA.

citizen sevenstar rallycustom

(the above pictures credited to the on-line seller)

In 1970’s, along with the Yacht Custom and the Soccer Custom (read about the Soccer Custom HERE) citizen made this one, designated for the divers. They called it, you guessed it, Rally Custom. It is made of stainless steel and so is the bracelet. The top part of the case is brushed and the sides are polished. The acrylic crystal is domed and makes the dial look warm and inviting. What can I say about the dial… beautiful sun burst grey center, and three more engraved inner bezels. An orange accent in the dial makes it really attractive. The day window is at 6 and the date at 4. Inside the case we can find the 25 jewel movement, calibre 5290. The automatic movement runs at 18,000 beats per hour. The date can be changed by the operating crown located at 4 but the day changes only by passing the midnight with the hour hand. The crown at 2 rotates the bidirectional inner bezel.citizen kyoto sevenstar rallycustom

So… what about “Kyoto” logo? It seems the Citizen watches marked Kyoto were designated for the French market (hence the French day wheel) and the reason for this might me an trademark problem in this country. Please note that on the Kyoto the hands are much shorter and have a different shape so I am almost 100% sure they are not original. They should look like on the first watch pictured, the one marked Citizen.

Are you a driver? You need one of these! 🙂 It will you make drive more slowly because you need more time at the stoplights to admire the beautiful dial and make all those calculation while operating the bezel.

Citizen Alarm Date Custom V2 Blackie


Without a doubt this is one of my all time favorite alarms! Sporty, great wrist presence, complicated, beautiful and useful! Here it is the NOS, black coated, 1971 Citizen Alarm Date Custom V2 blackie! (model  4-310179Y)

I wrote a few articles about Citizen alarms powered by this movement so the data is the same: a hand wound movement, calibre 3102 (date), 21 Jewels, 18,000 bph. The twin crowns are for time setting and winding the main spring and the other one for setting and winding the alarm. The crown at 2 o’clock in first position is winding the alarm while the alarm is deactivated. If you pull it in the second position you can set the alarm (counterclockwise) and the alarm is activated. Pressing it while the alarm is ringing will stop it. The crown at 4 will wind the watch and pulling it out will set the time. The alarm will ring for about 13-16 seconds.

citizen alarm date custom v2

The case is black coated and so is the bracelet. Read about another beautiful blackie V2 HERE. The three crowns, the bezel and the case back are made of stainless steel and are polished.

The dial is gorgeous, black, with applied luminous hour markers that are still glowing today. The date is located at 3 o clock, in a white frame, and is printed in white on a black date wheel. The second hand is orange and we have one more color, yellow, used for the inner bi directional rotating bezel. This bezel is operated by the third crown, the one located at 10 o’clock. You can use this feature for easily reading the elapsed time, up to 60 minutes, just as you do with your usual diver.

Read more about other alarms on the dedicated page HERE.

Citizen Auto Dater Seven para40mwater day-date


A special place among my favorite Citizen movements is reserved for the Jet ones. And this one has the last of the Jets Citizen ever made. My watch was made in September 1966 and Citizen produced these movements up to about 1967. The last JET is the day-date Auto Dater Seven.

citizen auto dater para water

As you can see, it is in perfect, NOS condition, with price tag and booklet. The writing on the paper is in Japanese only. The day wheel is written in Japanese so, it is safe to conclude that, the watch was intended for JDM (Japan domestic market). The entire case as well as the bracelet, are made of beautifully finished stainless steel. The crystal is acrylic. and has a date magnifier.

The style of the watch is elegant, with a fluted bezel, simple silver dial with a sunburst effect. There is no luminous material on the dial or hands. The frontal part of the case is brushed, and all the rest is polished. The bracelet is also finished with a nice combination of polished and brushed surfaces.  As I mentioned before, it is a day-date. That means that in addition to showing the date (at 3 o’clock), it also displays the day of the week (at 12). The day is in Japanese only, printed in black with red for Sundays. All the hour markers, the day and date frame and the Seven logo are applied.

The crown is used for winding the watch (although it is an automatic it can be winded by hand) and setting the time in the first position. The day changes by advancing the hands passing midnight. The date changes by pulling the crown. One pull of the crown will advance the day of the week one time. The crown get back to first position by it’s own due to a spring. Pulling it again, will change the day one more time. This system was named by Citizen “Easy Change”. What can I say, it is easy indeed.

The movement, is the last Jet, calibre 4102. It has 25 Jewels and beats at 18,800 bph. Beautiful!

Read more about watches powered by Jet movements HERE.

Citizen “Better Starts Now”


I just saw this commercial. I think it is super awesome and I had to share it with you!

  1. Pocket watch 1924
  2. Parashock, Japan’s first shock resistant watch, 1956
  3. Parawater, Japan’s first water resistant watch, 1959 – (read the Later edit)
  4. Cryston Solar Cell- World’s first analog light-powered watch, 1976
  5. Eco-drive – satellite wave F100

Here it is!

Better Starts Now is the simple belief that it is always possible to make something better, and that now is the time to start doing it.

Read more about the historical Citizen watches HERE.

Enjoy!

Later edit: Unfortunately Citizen Co. got the wrong watch in their commercial. The first water resistant watch didn’t have a date as the one featured here dropped into the aquarium. Read more about the REAL first Japanese water resistant watch HERE. – The Parawater!

Citizen Highness Chronometer Officially Certified 36000


COSC is Contrôle Officiel Suisse des Chronomètres, the Official Swiss Chronometer Testing Institute, which is the institute responsible for certifying the accuracy and precision of wristwatches in Switzerland.

Japan had something similar and so did Citizen with this model. It is a gorgeous piece powered by a very accurate movement. This particular watch, model 4-720300 Y ,  was made in February 1970 and it is marked Parawater.citizen chronometer officially certified 36000So, let’s start with the movement! It is the Citizen calibre 7230 based on 72xx calibre that is found in most of the Leopard range. Read about Citizen Leopard watches HERE. It is an automatic with 28 jewels, day and date, hacking seconds and it is running at 36000bph. It is operated by the “C” signed crown that sets the time, day and date, and winds the movement. It is engraved with it’s own serial, like most of the special movements Citizen produced. All this makes it a special piece and very accurate; after all it is Citizen Chronometer Officially Certified, the first generation of what later became Citizen Highness. In fact this one is called Leopard Highness. Such a special movement needs a special, stainless steel, all polished cushion shaped case. The caseback has it’s own special logo, a gold inlay medallion. The same logo is applied on the dial too. Talking about the dial, well, it is awesome! It’s simple, clean, with a vertical grain brushed surface. It has applied hour markers, logos and day-date frame. All the rest is printed in black. The skeleton hands are also black and so is the simple sweeping second hand. The entire face is protected by a mineral faceted (9 surfaces) crystal that plays with the light making it look really special; well after all it really is!

citizen highness manual

UPDATE:

Here is it one with a black dial I found on-line (pictures from the seller)

vintage citizen chronometer officially certified black

And here we have a beautiful story about a similar watch written by Adam: enjoy it! LINK HERE

Citizen ChronoMaster box


Sometimes it is a lot harder to find an original strap or an original box than finding the watch itself. One of the most elusive boxes for a Citizen collector is the one that came with the Chrono Master line.

I am happy to introduce to you, this exact one, the Citizen Chrono Master box:

citizen chronomaster box

The outer box is made of cardboard and the inner one of plastic. Both of them are marked with the famous eagle logo and the Citizen ChronoMaster writing. The eagle on the plastic one is applied. The inside lining is, as pictured, red.

Not much to say about this, but a great and difficult find for any collector. Me… happy to be one of the lucky ones. 🙂

Read about the Chrono Master strap & buckle HERE.

Citizen Alarm 4H (4 hands) 17 Jewels Parashock


If we talk about beautiful dials, this watch should not be overlooked. And on top of all that beauty, it is the loudest alarm I’ve heard. 🙂

Here it is: the 1963 Citizen Alarm 4H (four hands) 17 jewels Parashock!

Citizen alarm 4H parashock 17 jewels

As usual, the watch is made in a polished stainless steel case, but as a novelty, it has not one but two case backs. The reason for this is that the inner one that snaps into a precise place, has a pin that is the passive part of the alarm. The hammer part of the movement hits the pin that is attached to this case back and produces the loud, powerful sound. Above this there is an outer one that has 6 round holes to allow the sound to exit more easily. This piece sits on the back of the watch without touching the inner case back so that that one can vibrate without the pressure of the wrist. Imagine a bell; if you touch it when it is ringing it wont vibrate and will stop. Holding it by the handle, all is going to be just fine. It it the same with this watch.

The movement is the Citizen calibre hand winding 9812 (no date), 17 Jewels working at the usual rate of 18000 bph. The crowns are one for setting time and winding the main spring and the one for operating the alarm. The crown at 2 o’clock in first position is winding the alarm and the alarm is deactivated. If you pull it in the second position you can set the alarm (counterclockwise) and the alarm is activated. Pressing it while the alarm is ringing will stop it. The crown at 4 will wind the watch and pulling it out will set the time. The alarm will ring for about 8-9 seconds. The movement has a power reserve of about 40 hours and it runs great if winding once a day. It is marked Parashock.

Finally, lets talk about the way it looks! The 4 hands are polished and so are the hour markers. The dial is made out of two parts, a silver central one with a sunburst effect and an outer disk that sits higher that the central part. This outer disk has a central circular polished groove. On top of this groove are the hour markers, shaped as tiny bridges.

UPDATE 2018 March: Here it is a NOS,  box, tags and booklet gold plated version:

Bottom line, it is a  beautiful, loud, understated Citizen marvel, a joy to look at and a pleasure to listen to, ticking and ringing.
